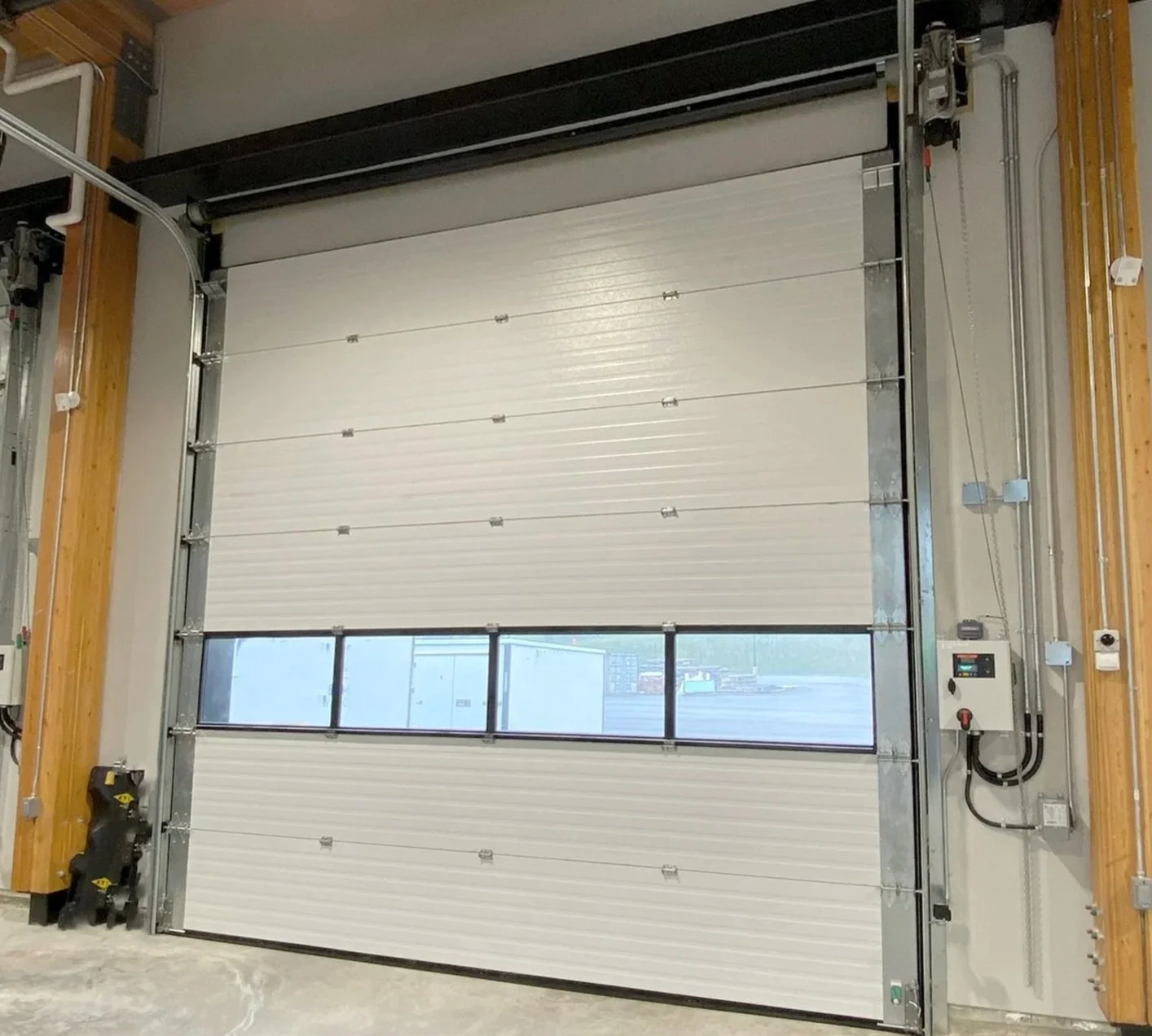

COMMERCIAL SECTIONAL DOOR HARDWARE
Merik stocks a wide variety of commercial sectional door hardware for both 2” and 3” track. All door face hardware, tracks, and mounting hardware have zinc coating conforming to ASTM A653.
Refer to the below diagram for more information about the anatomy of a sectional door. For additional information, contact our sales team.
TRACK
2" (50MM)
20mm (14ga) Commercial galvanized track, formed track 54mm (2 1/8”) overall outside dimension. Vertical tracks sloped for weather-tight closing; curves 305mm (12”) or 400mm (16”) radius, selection dependent on available headroom.
3" (75MM)
2.75mm (12ga) commercial galvanized track, formed track 80mm (3 1/8”) overall outside dimension. Vertical tracks sloped for weather-tight closing, 400mm (16”) radius.
2" (50MM)
2.0mm (14ga) thick commercially galvanized steel, rib enforced.
3" (75MM)
3.1mm (11ga) thick commercially galvanized steel, rib reinforced.
Track Brackets
Continuous Track Angle
2" (50MM)
Optional at additional cost. Continuous track angle bolted adjustable type, fabricated from 2.0mm (14ga) commercially galvanized steel for full height of opening, fully adjustable to ensure weather-tight seal. Continuous angle to provide continuous track support for full opening height (combination angle and clip mounting not acceptable).
3" (75MM)
Optional at additional cost. Continuous track angle bolted adjustable type, fabricated from 2.4mm (13ga) commercially galvanized steel for full height of opening, fully adjustable to ensure weather-tight seal. Continuous angle to provide continuous track support for full opening height (combination angle and clip mounting not acceptable).
Panels
Insulated
Insulated sections fabricated from prepainted, hot dip galvanized, steel sheet; with rigid polyurethane insulation core, CFC-1 1 free, face sheet stucco embossed and rib reinforced
Available Thickness:
C150 - 1 1/2”
C175 - 1 3/4”
C200/C200C - 2”
C300 - 3”
C150 & C175 OPTIONS
C200 OPTIONS
C200c OPTIONS
Ribbed
Multi-Ribbed
Almond
Bronze
Brown
Slate Grey
Desert Tan
Sandstone
Cafe
Black
Iron Ore
White
Black Anodized
Clear
Anodized
White Duracron
Brown Duracron
White
Multi-Ribbed
White
Ribbed

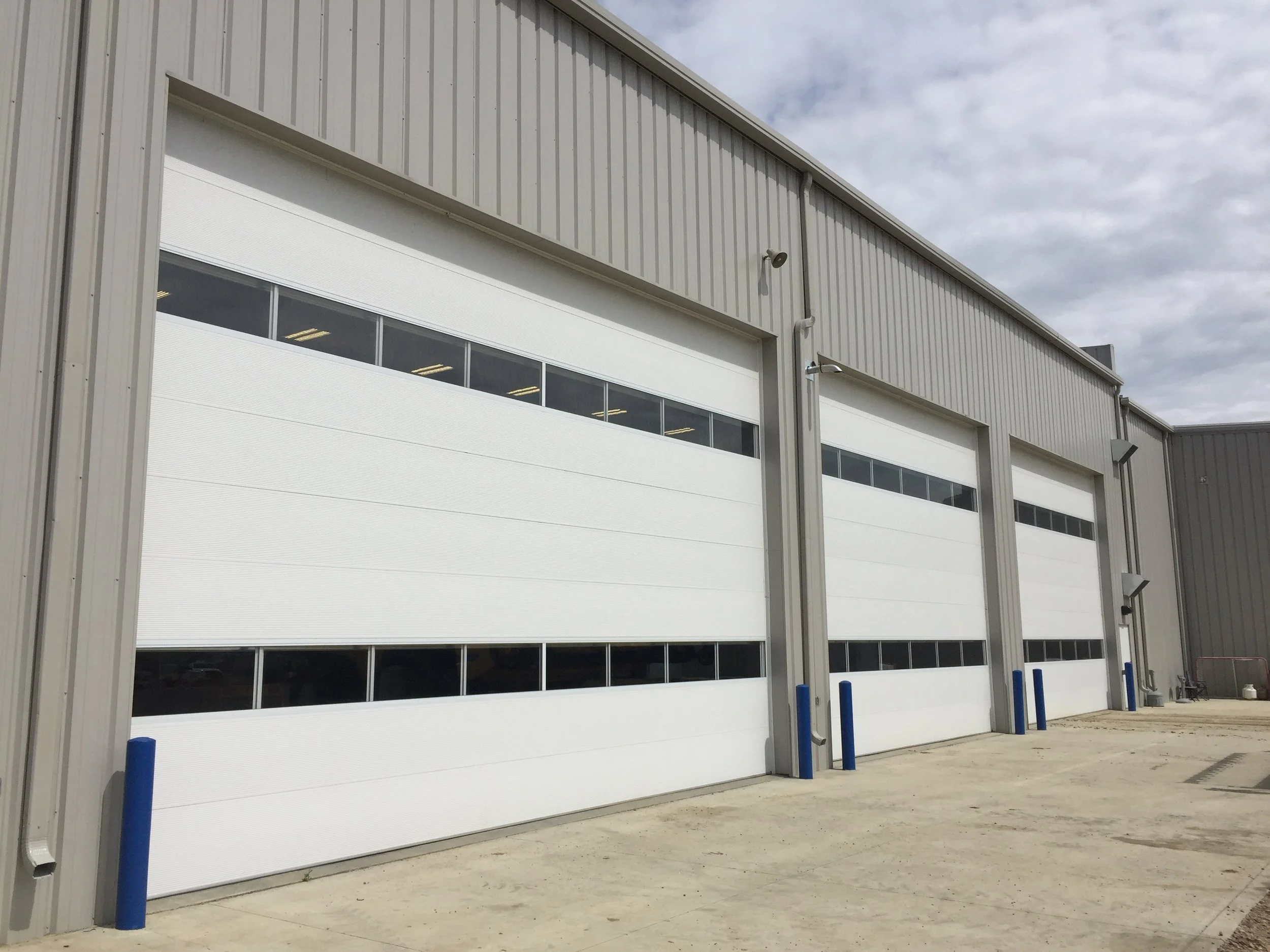

C300 OPTION
White
Multi-Ribbed
White
Brown
Aluminum
Manufactured from 6064-T6 high quality aluminum alloy extrusions.
Finishes

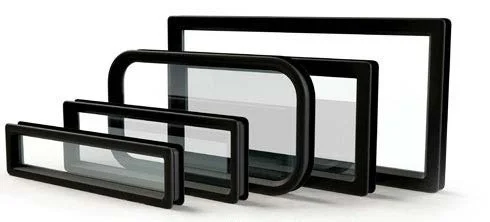

GLAZING OPTIONS
|
C150, C175, C200,C200C |
|
| Type B | 24" x 6 |
| Type CPL | 24" x 8" |
| Type D | 34" x 16" |
| Type E | 24" x 12" |
|
Fullview |
|
|
C300 |
|
| Type CPL | 2" X 8" |
| Type D | 34" x 16" |
| Type E | 24" x 12" |
|
Fullview |
|
1/8” (3mm) or 1/4” (6mm) thick: clear acrylic, polycarbonate, plain or tempered glass, lexan (MR10 Coating)
5/8" (16mm) polycarbonate - tinted options available
1/2” (13mm) thick sealed plain or tempered glass & Self-aligning glazing retainer
1/2" (13mm) Sealed Lexan with MR10 coating
Panelled Sections
Fabricated from 0.05" (1.29mm) thick stucco embossed aluminum sheet
Kickproof bottom panel available in insulated and plywood core non-insulated
Springs
Helically wound torsion springs, manufactured from oil-tempered spring wire, stress relieved, minimum 10,000 cycles. Available in round or square wire.
Pusher Springs
Recommended on all standard lift doors with manual chain hoist or jackshaft electric operators. Available as standard or quiet options.
Bumper Leaf Springs
Recommended for all lift types when doors are manually operated.
Rollers & Brackets
Rollers
2" (50MM)
Steel rollers 48mm (1 7/8”) diameter with ten 6mm (1/4”) diameter ball bearings, 11mm (7/16”) diameter roller axles and inner and outer ball races for hardened steel.
3" (75MM)
Steel rollers 73mm (2 7/8”) diameter with ten 8mm (5/16”) diameter ball bearings, 11mm (7/16”) diameter roller axles and inner and outer ball races for hardened steel.
Optional: Heavy-duty sealed bearing rollers, both 50mm (2”) and 75mm (3”).
top Brackets
2" (50MM)
Fabricated from 2.4mm (13ga) thick commercially galvanized steel.
3" (75MM)
Fabricated from 3.1mm (11ga) thick commercially galvanized steel.
bottom Brackets
2" (50MM)
Fabricated from 2.4mm (13ga) thick commercially galvanized steel.
3" (75MM)
Fabricated from 3.1mm (11ga) thick commercially galvanized steel.
HINGES
Center and end hinges are available in 11 gauge steel for commercial overhead doors
Weather Strip
For more information visit the weather strip page
Drums available for standard lift, high lift and vertical lift
Max cable sizes:
5/32”
3/16”
1/8”
1/4”
Cables
Stainless steel
Sold by the foot
Drums & Cables
Shafts
Available hollow, solid, or solid with keyed notch
Solid by the foot or in cut lengths
Diameters:
1”
1 3/16”
1 7/16”
1 1/4”
1 1/2”
2”
